THE FUTURE OF DECARBONIZATION IS KERIONICS

Green Hydrogen Generation

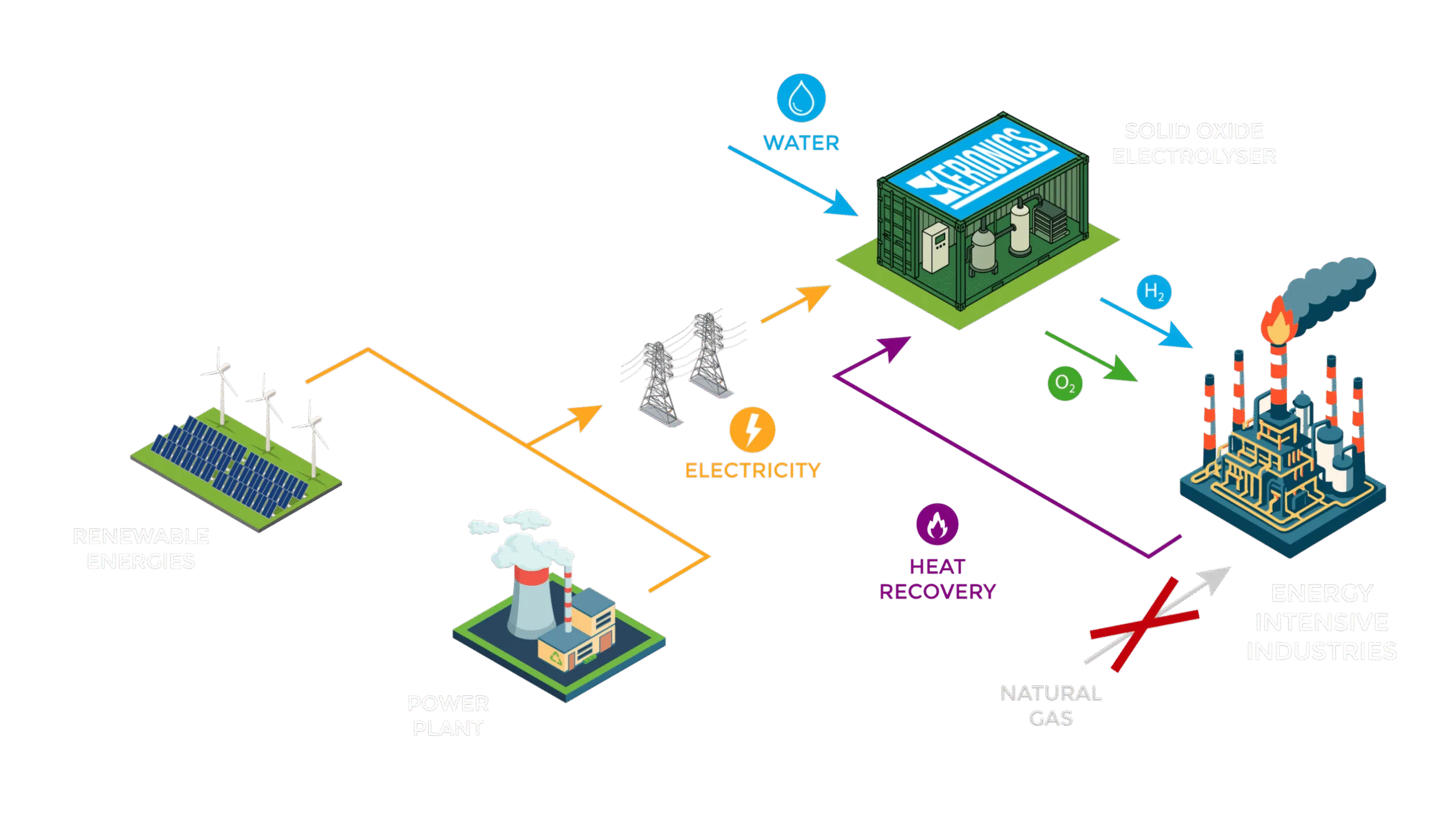

POWER TO X

Power-to-X: Green Hydrogen is the energy source of the future

KERIONICS face the net-zero challenge, accelerating decarbonization worldwideReaching net-zero emissions is our mission

TODAY CHALLENGE

Building an Industry- value chain for Hydrogen generation

OUR GOAL

Hydrogen production at competitive cost

MARKET

Manufacturing stacks to meet the market future demand

TRENDS

KERIONICS is on the road to achieve 2050 goals

Kerionics is key, because we have and efficient and specialized solution for Hydrogen generation
Our goal: Promote the whole value chain with partnership and consortiums.
EU targets: End 2023 targeting 1 million ton of renewably produced hydrogen and 6 GW of electrolyzer capacity.
For 2030 40 GW

Mandatory reduction of RENEWABLE ENERGY PRICE

TECHNOLOGY

Industrial efficiencies, electrification, CO2 capture (CCUS), hydrogen & technology hegemony in EU

POLICY

More than 25 countries have published strategies and plans to develop hydrogen economy

INDUSTRY

Climate change remains as a challenge although purposeful corporations have already set net- zero targets

GREEN INVESTMENT

Opportunity window – Transitioning to net zero represents a challenge but also a huge investment opportunity

TOP LEVEL TRENDS & DRIVERS

Plan Nacional Integrado de Energía y Clima 2021-2030, 20 enero 2020: 42% de uso final de la energía proceda de fuentes renovables, incluyendo energía empleada en transporte, generación eléctrica y aplicaciones de calor y frío.

VALUE PROPOSITION OF KERIONIC’S SOEC TECHNOLOGY DEFINE AN ENTRY POINT OF < $ 1,5/ KG HYDROGEN PRODUCTION PROPRIETARY TECH ASSETS & GREEN ENERGY AVAILABILITY PAVE THE WAY FOR AN INVENCIBLE STRATEGY

OUR PRODUCTS - STACK

High Temperature Electrolyzer

MEA

Membrane electrode assembly. Advanced ceramics stack components/stack generation module O2 &/or H2

SOEL Stacks

High Temperature Electrolyzer (SOEL)

FAMILY:

5 cells
20 cells
40 cells

Electrolyzer

An art of the high temperature electrolyzer (SOEL) which captures 43% of its value.

VALUE PROPOSITION SOC ELECTROLYZER (SOEL)

Electrolysis technologies	Alkaline	PEM	SOEL
Temperature	60-80 °C	60-80 °C	600-800 °C
Efficiency OPEX	55 %	70 %	90 %
Advantage	Maturity	Fast response	Versatility Applications
Disadvantage	Unvariable	Cost	Immaturity
Price 2030 CAPEX	300-550 €/kW	350-1250 €/kW	300-800 €/kW

Lower TCO due to CAPEX and OPEX reduction

Electrode optimization -O2 electrode

Composition variation
Surface activation by electrocatalyst nanoparticles (infiltration, exsolution, etc)
Microstructure design (multilayers with graded porosity and composition).

Electrolyte (material evolution and nanofabrication) to reduce Rohm and Interlayers to avoid cation interdiffusion and minimize interfacial resistance – Enabled by advanced manufacturing techniques sputtering – digital printing

Current collector layers to enable higher currents per cell and ensure tight electric contact

Bipolar plate and stack design to enable excellent heat management and pressurized operation

Support (cathode): Tuned cathode microstructure. Maximize electric conductivity and mechanical resistance – Enabled by advanced manufacturing techniques
